Tensorflow Inception v3 benchmark

Tensorflow Inception v3 benchmark

LeaderGPU is an ambitious player in the GPU computing market intend to change the current state of affairs. According on tests results, the computation speed for the Inception v3 model in LeaderGPU is 3 times faster comparing to Google Cloud, and in 2.9 times faster comparing to AWS (data is provided with respect to example with 8x GTX 1080). The cost of per-minute leasing of the GPU in LeaderGPU starts from as little as 0.02 euros, which is more than 4 times lower than the cost of renting in Google Cloud and more than 5 times lower than the cost in AWS (as of July 7).

Throughout this article, we will be testing the Inception v3 model in such services as LeaderGPU, AWS, and Google Cloud. We will determine why LeaderGPU is the leading offer among the considering options.

All tests were performed using python 3.5 and Tensorflow-gpu 1.2 on machines with GTX 1080, GTX 1080 TI and Tesla P 100 with CentOS 7 operating system installed and CUDA 8.0 library.

The following commands were used to run the tests:

# git clone https://github.com/tensorflow/benchmarks.git
# python3.5 benchmarks/scripts/tf_cnn_benchmarks/tf_cnn_benchmarks.py --num_gpus=2(Number of cards on the server) --model inception3 --batch_size 32 (64, 128)

GTX 1080 instances

For the first test, we use instances with the GTX 1080. Testing environment data (with batch sizes 32 and 64) is provided below:

  • Instance types: ltbv17, ltbv13, ltbv16
  • GPU: 2x GTX 1080, 4x GTX 1080, 8x GTX 1080
  • OS: CentOS 7
  • CUDA / cuDNN: 8.0 / 5.1
  • TensorFlow GitHub hash: b1e174e
  • Benchmark GitHub hash: 9165a70
  • Command: # python3.5 benchmarks/scripts/tf_cnn_benchmarks/tf_cnn_benchmarks.py --num_gpus=2 --model inception3 –batch size 32 (optional 64)
  • Model: Inception v3
  • Date of testing: June 2017

The test results are shown in the following diagram:

Inception v3 GTX 1080 test results

GTX 1080TI instances

Now let's use instances with the GTX 1080 Ti. Testing environment data (with batch sizes 32 and 64) is provided below:

  • Instance types: ltbv21, ltbv18
  • GPU: 2x GTX 1080TI, 4x GTX 1080TI
  • OS: CentOS 7
  • CUDA / cuDNN: 8.0 / 5.1
  • TensorFlow GitHub hash: b1e174e
  • Benchmark GitHub hash: 9165a70
  • Command: # python3.5 benchmarks/scripts/tf_cnn_benchmarks/tf_cnn_benchmarks.py --num_gpus=2 (4) --model inception3 --batch_size 32 (optional 64, 128)
  • Model: Inception v3
  • Date of testing: June 2017

The test results are shown in the following diagram:

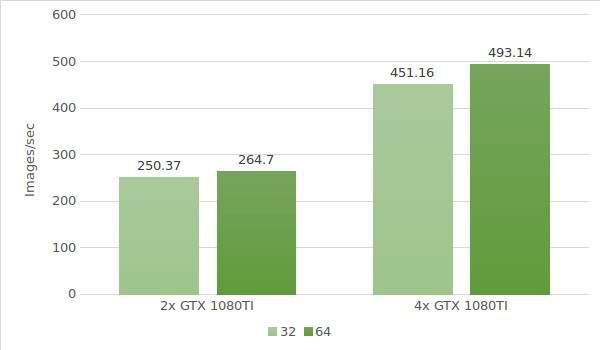

Inception v3 GTX 1080TI test results

Tesla P100 instance

Finally, it's time to test the model with the Tesla P100. Testing environment data (with batch sizes 32, 64 and 128) is provided below:

  • Instance type: ltbv20
  • GPU: 2x NVIDIA® Tesla® P100
  • OS: CentOS 7
  • CUDA / cuDNN: 8.0 / 5.1
  • TensorFlow GitHub hash: b1e174e
  • Benchmark GitHub hash: 9165a70
  • Command: # python3.5 benchmarks/scripts/tf_cnn_benchmarks/tf_cnn_benchmarks.py --num_gpus=2 --model inception3 –batch size 32 (optional 64, 128)
  • Model: Inception v3
  • Date of testing: June 2017

The test results are shown in the following diagram:

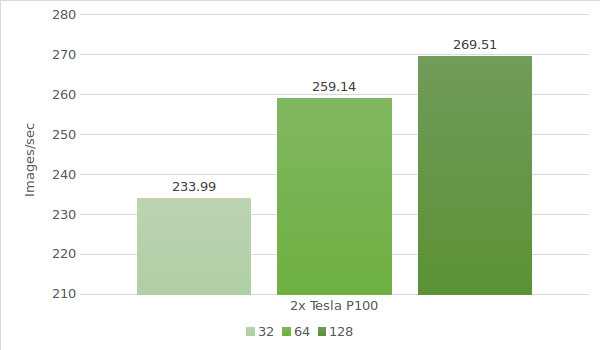

Inception v3 Tesla P100 test results

In the table below, we collected the results of inception v3 tests on Google cloud and AWS (with the batch size 64)

GPU Google cloud AWS
1x Tesla K80 30.5 30.8
2x Tesla K80 57.8 58.7
4x Tesla K80 116 117
8x Tesla K80 227 230

* Data for the table is quoted from the following sources:

https://www.tensorflow.org/performance/benchmarks#details_for_google_compute_engine_nvidia_tesla_k80
https://www.tensorflow.org/performance/benchmarks#details_for_amazon_ec2_nvidia_tesla_k80

Let's make a calculation of the cost and processing time for 1,000,000 images on each LeaderGPU, AWS and Google machine. Counting was carried out with a batch size of 64 for all machines.

GPU Number of images Time Cost (per minute) Total cost
2x GTX 1080 1000000 88m 41sec 0,02 € 1,77 €
4x GTX 1080 1000000 48m 18sec 0,03 € 1,45 €
8x GTX 1080 1000000 24m 18sec 0,09 € 2,19 €
4x GTX 1080TI 1000000 33m 47sec 0,04 € 1,35 €
2х Tesla P100 1000000 64m 18sec 0,08 € 5,14 €
8x Tesla K80 Google cloud 1000000 73m 25sec 0,0825 €** 6,05 €
8x Tesla K80 AWS 1000000 72m 27sec 0,107 € 7,75 €

** The Google cloud service does not offer per minute payment plans. Per minute cost calculations are based on the hourly price ($ 5,645).

As can be concluded from the table, the speed of image processing in the Inception v3 model is the maximum with 8x GTX 1080 from LeaderGPU, while:

  • The initial cost in LeaderGPU starts from as little as € 1.77, which is about 3.42 times lower than in the instances of 8x Tesla K80 by Google Cloud, and about 4.38 times lower than in instances of 8x Tesla K80 from Google AWS;
  • processing time was 24 minutes 18 seconds, which is 3.03 times faster than in the instances of 8x Tesla K80 from the Google Cloud, and 2.99 times faster than in the 8x Tesla K80 instances from Google AWS.

Testing results leave no doubts. LeaderGPU is a proven leader in the field of GPU-computing, offering unrivaled solutions at reasonable prices. Take advantage of the cost-effective GPU offer from LeaderGPU today!
