TensorFlow Benchmark
LeaderGPU® is a new player in the GPU computing market, intend to change the game rules. At this moment, GPU computing market is represented by several large players, such as AWS, Google Cloud, etc. However, a large player does not always mean the best market offer. The LeaderGPU® project, in comparison to AWS and Google Cloud, provides physical servers, not VPS, where hardware resources can be shared among several dozens of users. The table below compares the cost of processing 500,000 images for the Inception V3 model by different services:
Model | GPU | Service | Number of images | Time | Price (per minute) | Total Cost |
---|---|---|---|---|---|---|
Inception V3 | 8x K80 | Google cloud | 500000 | 36m 43sec | € 0,0825* | € 3,02 |
Inception V3 | 8x K80 | AWS | 500000 | 36m 14sec | € 0,107 | € 3,87 |
Inception V3 | 8x GTX 1080 | LeaderGPU | 500000 | 12m 9sec | € 0,10 | € 1,22 |
The table shows that LeaderGPU® is not only 300% faster than its competitors also cost-effective by at least 29%, in comparison to Google Cloud and AWS.
Tests were conducted on the LeaderGPU® computing systems. For the assessment of competitors’, we’ve used the results of tests of Google and AWS instances. Tests were conducted on synthetic data of the following networks models ResNet-50, ResNet-152, VGG16 and AlexNet. At the end of this article you will find the results of tests of other models. The testing of synthetic data was carried out using tf. Variable in analogy with the configuration of models for ImageNet.

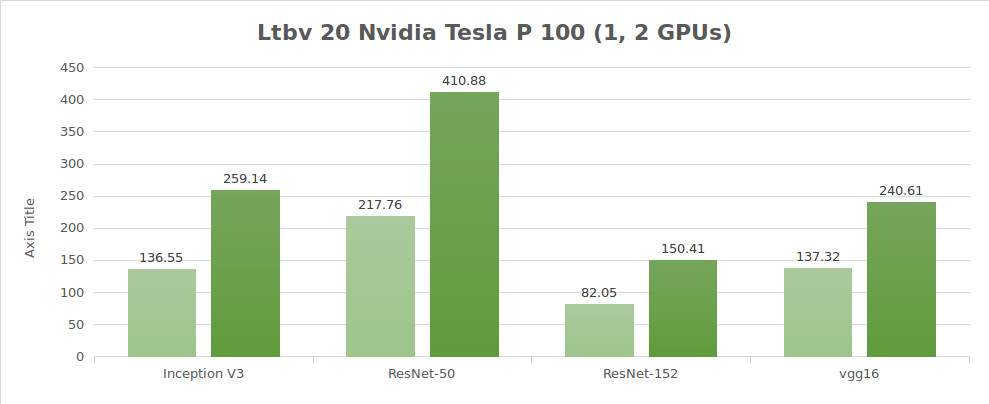

LeaderGPU® tests (ltbv20 2x Nvidia® Tesla® P 100)
Testing environment:
- Instance type:ltbv20
- GPU:2x NVIDIA® Tesla® P100
- OS:CentOS 7
- CUDA / cuDNN:8.0 / 5.1
- TensorFlow GitHub hash:b1e174e
- Benchmark GitHub hash:9165a70
- Date of testing:June 2017
Options | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
Batch size on GPU | 64 | 64 | 32 | 512 | 32 |
Optimization | sgd | sgd | sgd | sgd | sgd |
Testing synthetic data (images/sec)
GPUs | InceptionV3 | ResNet-50 | ResNet-152 | VGG16 | Alexnet |
---|---|---|---|---|---|
1 | 136.55 | 217.76 | 82.05 | 137.32 | 2807.64 |
2 | 259.14 | 410.88 | 150.41 | 240.61 | 5117.86 |
Other results
Testing synthetic data (images/sec)
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 1516.70 | 373.45 | 240.61 | 203.73 | 14524.23 | 714.25 |
64 | 2480.30 | 472.15 | 274.67 | 230.73 | 28599.07 | 877.76 |
128 | 3486.68 | 540.51 | 288.80 | 243.55 | 44943.19 | 990.89 |
256 | 4440.35 | 464.69 | -* | -* | 63311.75 | 1075.38 |
512 | 5117.86 | -* | -* | -* | 80078.57 | 1104.74 |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 574.13 | 233.99 | 116.45 | 361.06 | 214.15 | 150.41 |
64 | 1052.63 | 259.14 | 125.09 | 410.88 | 245.36 | 170.79 |
128 | 1509.01 | 269.51 | -* | 439.41 | -* | -* |
256 | 2041.60 | -* | -* | -* | -* | -* |
512 | 2323.77 | -* | -* | -* | -* | -* |
* Available amount of GPU random access memory doesn't allow to launch tests on this size of a packet (batch size).

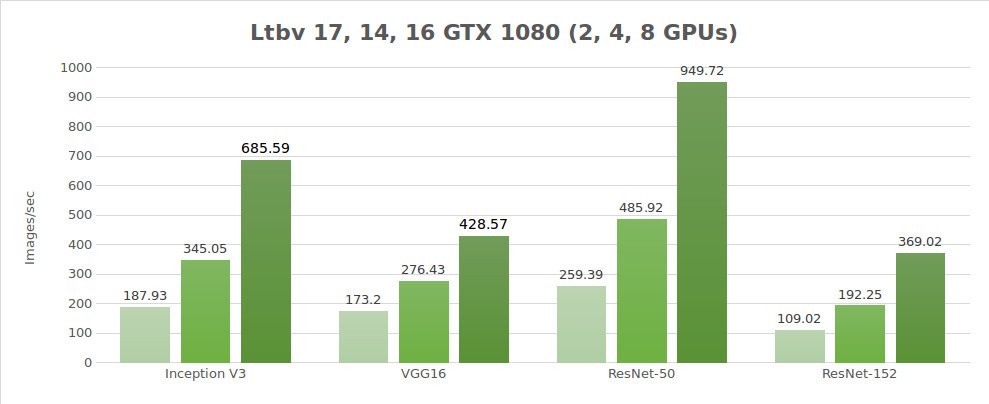

LeaderGPU® tests (GTX 1080)
Testing environment:
- Instance type:ltbv17, 14, 16
- GPU:GTX 1080
- OS:CentOS 7
- CUDA / cuDNN:8.0 / 5.1
- TensorFlow GitHubb1e174e
- Benchmark GitHub hash:9165a70
- Date of testing:June 2017
Options | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
Batch size on GPU | 64 | 64 | 32 | 512 | 32 |
Optimization | sgd | sgd | sgd | sgd | sgd |
Testing synthetic data (images/sec)
GPUs | InceptionV3 | VGG16 | ResNet-50 | ResNet-152 | Alexnet |
---|---|---|---|---|---|
2 | 187.93 | 173.2 | 259.39 | 109.02 | 3344.11 |
4 | 345.05 | 276.43 | 485.92 | 192.25 | 6221.67 |
8 | 685.59 | 428.57 | 949.72 | 369.02 | 9405.27 |
Other results
Testing synthetic data (images/sec)
2x GTX 1080
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 823.87 | 223.73 | 150.50 | 129.67 | 14440.58 | 608.46 |
64 | 1517.33 | 299.24 | 173.20 | 149.62 | 25817.36 | 676.81 |
128 | 2198.87 | 291.47 | -* | -* | 40910.02 | 717.52 |
256 | 2878.43 | -* | -* | -* | 53821.73 | 730.47 |
512 | 3344.11 | -* | -* | -* | 66096.43 | -* |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 284.06 | 180.62 | 91.63 | 245.55 | 154.15 | 109.02 |
64 | 568.15 | 187.93 | -* | 259.39 | -* | -* |
128 | 911.17 | -* | -* | -* | -* | -* |
256 | 1211.36 | -* | -* | -* | -* | -* |
512 | 1424.58 | -* | -* | -* | -* | -* |
* Available amount of GPU random access memory doesn't allow to launch tests on this size of a packet (batch size).
4x GTX 1080
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 1238.14 | 295.30 | 272.03 | 155.75 | 18389.01 | 1110.35 |
64 | 2375.18 | 354.55 | 276.43 | 169.51 | 37465.98 | 1235.77 |
128 | 3889.23 | 321.28 | -* | -* | 60612.34 | 1365.62 |
256 | 5056.10 | -* | -* | -* | 89908.56 | 1394.58 |
512 | 6221.67 | -* | -* | -* | 114433.39 | -* |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 450.85 | 328.23 | 166.82 | 447.25 | 276.27 | 192.25 |
64 | 885.37 | 345.05 | -* | 485.92 | -* | -* |
128 | 1576.74 | -* | -* | -* | -* | -* |
256 | 2126.47 | -* | -* | -* | -* | -* |
512 | 2447.81 | -* | -* | -* | -* | -* |
* Available amount of GPU random access memory doesn't allow to launch tests on this size of a packet (batch size).
8x GTX 1080
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 1347.98 | 381.49 | 347.37 | 333.71 | 27248.65 | 2023.19 |
64 | 2406.83 | 620.29 | 428.57 | -* | 51105.12 | 2352.15 |
128 | 4255.75 | -* | -* | -* | 93211.00 | 2644.26 |
256 | 6318.54 | -* | -* | -* | 145559.65 | 2610.21 |
512 | 9405.27 | -* | -* | -* | 206469.92 | -* |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 555.36 | 632.23 | 323.09 | 857.12 | 518.57 | 369.02 |
64 | 1042.12 | 685.59 | -* | 949.72 | -* | -* |
128 | 1735.24 | -* | -* | -* | -* | -* |
256 | 2575.93 | -* | -* | -* | -* | -* |
512 | 3815.25 | -* | -* | -* | -* | -* |
* Available amount of GPU random access memory doesn't allow to launch tests on this size of a packet (batch size).

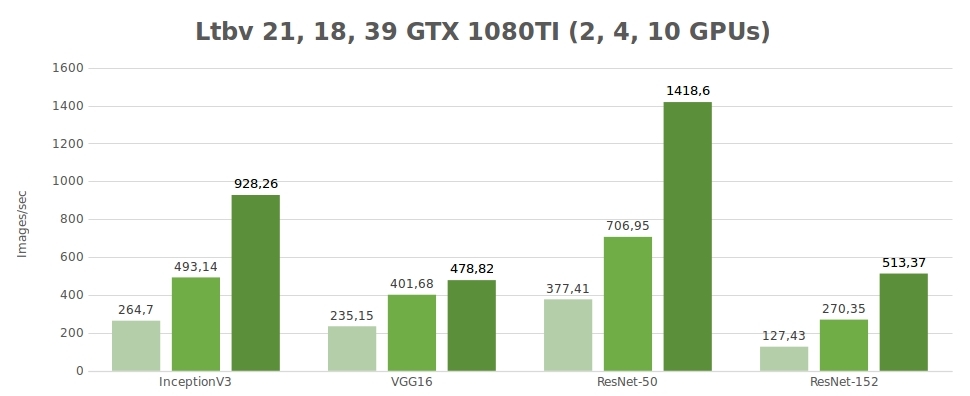

LeaderGPU® tests (GTX 1080TI)
Testing environment:
- Instance type:ltbv21, 18, 36
- GPU:GTX 1080TI
- OS:CentOS 7
- CUDA / cuDNN:8.0 / 5.1
- TensorFlow GitHubb1e174e
- Benchmark GitHub hash:9165a70
- Date of testing:June 2017
Options | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
Batch size on GPU | 64 | 64 | 32 | 512 | 32 |
Optimization | sgd | sgd | sgd | sgd | sgd |
Testing synthetic data (images/sec)
GPUs | InceptionV3 | VGG16 | ResNet-50 | ResNet-152 | Alexnet |
---|---|---|---|---|---|
2 | 264.7 | 235.15 | 377.41 | 127.43 | 4596.37 |
4 | 493.14 | 401.68 | 706.95 | 270.35 | 8513.54 |
10 | 928.26 | 478.82 | 1418.60 | 513.37 | - |
Other results
Testing synthetic data (images/sec)
2x GTX 1080 TI
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 880.18 | 287.25 | 190.05 | 169.67 | 13411.38 | 807.60 |
64 | 1743.20 | 385.95 | 235.15 | 198.28 | 28360.89 | 954.35 |
128 | 2808.68 | 457.54 | - | - | 44453.02 | 1042.77 |
256 | 3777.74 | - | - | - | 67451.51 | 1070.28 |
512 | 4596.37 | - | - | - | 87898.53 | - |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 304.50 | 250.37 | 125.81 | 351.21 | 218.02 | 127.43 |
64 | 607.91 | 264.70 | - | 377.41 | 236.24 | - |
128 | 1162.21 | - | - | 381.62 | - | - |
256 | 1617.89 | - | - | - | - | - |
512 | 1992.50 | - | - | - | - | - |
4x GTX 1080 TI
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 1264.01 | 378.39 | 331.08 | 208.39 | 19239.51 | 1487.66 |
64 | 2502.01 | 481.49 | 401.68 | 236.07 | 38818.10 | 1755.63 |
128 | 4539.97 | 541.39 | - | - | 71457.41 | 1943.93 |
256 | 6787.68 | - | - | - | 111721.23 | 1992.45 |
512 | 8513.54 | - | - | - | 152549.70 | -* |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 475.69 | 451.16 | 228.76 | 648.11 | 383.04 | 270.35 |
64 | 942.19 | 493.14 | - | 706.95 | 422.93 | - |
128 | 1706.03 | - | - | 722.16 | - | - |
256 | 2907.18 | - | - | - | - | - |
512 | 3478.50 | - | - | - | - | - |
10x GTX 1080 TI
Batch size | alexnet | vgg11 | vgg16 | vgg19 | lenet | googlenet |
---|---|---|---|---|---|---|
32 | 865.89 | 368.50 | 309.07 | 289.88 | 18065.32 | 2200.48 |
64 | 1719.84 | 667.04 | 478.82 | 465.45 | 36486.24 | 3333.87 |
128 | 3344.45 | 868.66 | - | - | 70077.18 | 3771.19 |
256 | 6159.03 | - | - | - | 138600.70 | 4335.86 |
512 | - | - | - | 237511.15 | - |
Batch size | overfeat | inceptionv3 | inceptionv4 | resnet50 | resnet101 | resnet152 |
---|---|---|---|---|---|---|
32 | 346.22 | 809.19 | 459.10 | 1116.42 | 760.83 | 513.37 |
64 | 676.99 | 928.26 | - | 1418.60 | 937.95 | - |
128 | 1322.01 | - | - | 1504.64 | - | - |
256 | 2387.97 | - | - | - | - | - |
512 | - | - | - | - | - | - |

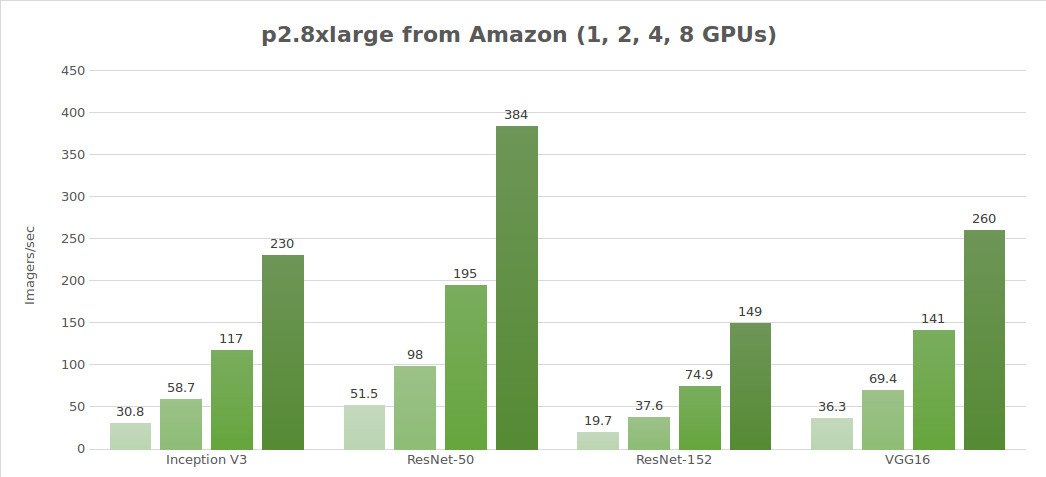

AWS EC2 tests (NVIDIA® Tesla® K80)
Testing environment:
- Instance type:p2.8xlarge
- GPU:8x NVIDIA® Tesla® K80
- OS:Ubuntu 16.04 LTS
- CUDA / cuDNN:8.0 / 5.1
- TensorFlow GitHubb1e174e
- Benchmark GitHub hash:9165a70
- Date of testing:May 2017
Options | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
Batch size on GPU | 64 | 64 | 32 | 512 | 32 |
Optimization | sgd | sgd | sgd | sgd | sgd |
Testing synthetic data (images/sec)
GPUs | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
1 | 30.8 | 51.5 | 19.7 | 684 | 36.3 |
2 | 58.7 | 98.0 | 37.6 | 1244 | 69.4 |
4 | 117 | 195 | 74.9 | 2479 | 141 |
8 | 230 | 384 | 149 | 4853 | 260 |
Other results (images/sec)
GPUs | InceptionV3 (batch size 32) | ResNet-50 (batch size 32) |
---|---|---|
1 | 29.9 | 49.0 |
2 | 57.5 | 94.1 |
4 | 114 | 184 |
8 | 216 | 355 |
The test results originated from https://www.tensorflow.org/lite/performance/measurement#details_for_amazon_ec2_nvidia_tesla_k80

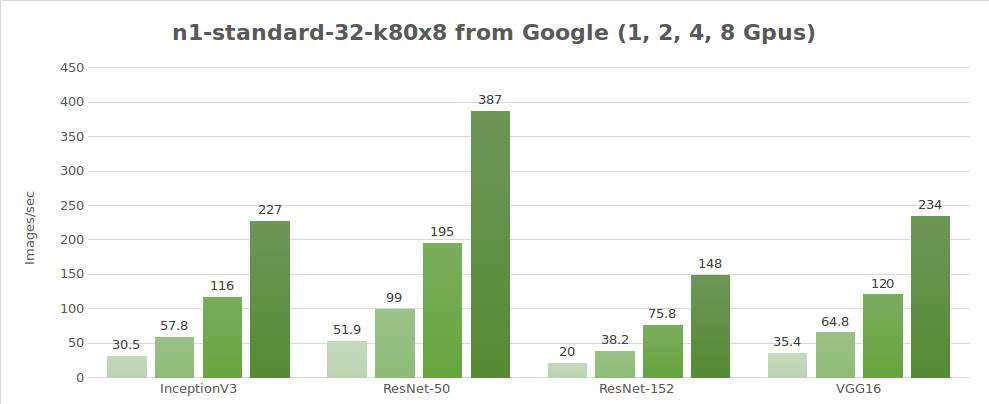

Google Compute Engine tests (NVIDIA® Tesla® K80)
Testing environment:
- Instance type:n1-standard-32-k80x8
- GPU:8x NVIDIA® Tesla® K80
- OS:Ubuntu 16.04 LTS
- CUDA / cuDNN:8.0 / 5.1
- TensorFlow GitHubb1e174e
- Benchmark GitHub hash:9165a70
- Date of testing:May 2017
Options | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
Batch size on GPU | 64 | 64 | 32 | 512 | 32 |
Optimization | sgd | sgd | sgd | sgd | sgd |
Testing synthetic data (images/sec)
GPUs | InceptionV3 | ResNet-50 | ResNet-152 | Alexnet | VGG16 |
---|---|---|---|---|---|
1 | 30.5 | 51.9 | 20.0 | 656 | 35.4 |
2 | 57.8 | 99.0 | 38.2 | 1209 | 64.8 |
4 | 116 | 195 | 75.8 | 2328 | 120 |
8 | 227 | 387 | 148 | 4640 | 234 |
Other results (images/sec)
GPUs | InceptionV3 (batch size 32) | ResNet-50 (batch size 32) |
---|---|---|
1 | 29.3 | 49.5 |
2 | 55.0 | 95.4 |
4 | 109 | 183 |
8 | 216 | 362 |
The test results originated from https://www.tensorflow.org/lite/performance/measurement#details_for_google_compute_engine_nvidia_tesla_k80
Now let’s make an assessment of image processing calculating costs.
In the table below, we will calculate the cost and processing time of 500,000 images using the Inception V3, ResNet-60 and ResNet-152 models, and find the best offer. As can be seen from the table, LeaderGPU® is the most favorable market offer among other considered suppliers.
Model | GPU | Platform | Number of images | Time | Price (per minute) | Total cost |
---|---|---|---|---|---|---|
Inception V3 | 8x K80 | Google cloud | 500000 | 36m 43sec | € 0,0825* | € 3,02* |
Inception V3 | 8x K80 | AWS | 500000 | 36m 14sec | € 0,107* | € 3,87* |
Inception V3 | 8x 1080 | LeaderGPU | 500000 | 12m 9sec | € 0,10 | € 1,22 |
ResNet-50 | 8x K80 | Google cloud | 500000 | 21m 32sec | € 0,0825* | € 1,77* |
ResNet-50 | 8x K80 | AWS | 500000 | 21m 42 sec | € 0,107* | € 2,32* |
ResNet-50 | 8x 1080 | LeaderGPU | 500000 | 8m 46sec | € 0,10 | € 0,88 |
ResNet-152 | 8x K80 | Google cloud | 500000 | 56m 18sec | € 0,0825* | € 4,64* |
ResNet-152 | 8x K80 | AWS | 500000 | 55m 55sec | € 0,107* | € 5,98* |
ResNet-152 | 8x 1080 | LeaderGPU | 500000 | 22m 35sec | € 0,10 | € 2,26 |
* The Google cloud service is not provided per minute. Minute cost is calculated based on the hourly price ($ 5,645)
